Product Name：Face milling machine
Product No.：
YFM-1215
Tel：86-510-83051530
E-mail：info@yizhouhj.com
Add：Shengli Road, Yangshan
Industrial Park, Huishan District, Wuxi City, Jiangsu Province, China
Fax：86-510-83051530
YFM-1215

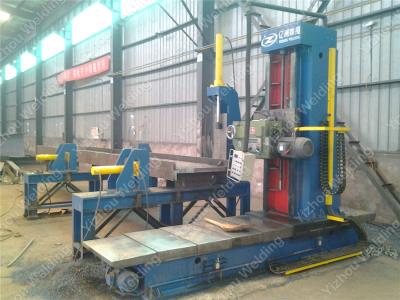

The face milling machine is comp be composed of milling head,lifting column,working table,machine body,mechanical feeding system,electrical control system,rail protection device,etc.

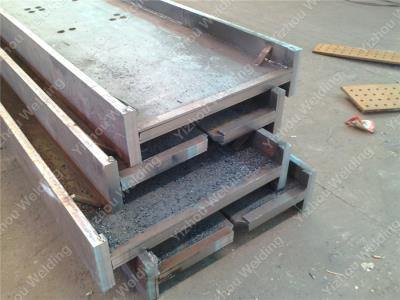

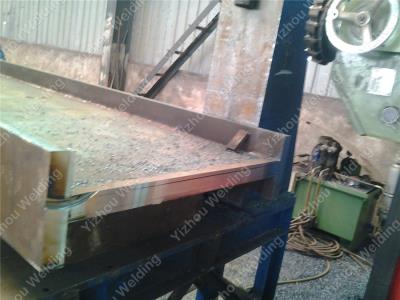

This machine is used to process two end face of Box beam,H beam and cylinder.the milling head is 0-45° degree adjustable so as to mill the required bevels of end face of beams.
Model | YFM-0810 | YFM-1215 | YFM-1520 |
Suitable work-piece height(mm) | 800 | 1200 | 1500 |
Suitable work-piece width(mm) | 1000 | 1500 | 2000 |
Milling head power(kw) | 5.5 | ||
Vertical milling speed(mm/min) | 55-500 | ||
Horizontal milling speed(mm/min) | 50-440 | ||
Milling head tilting angle | 0-45° | ||
Milling head model | TX32A/TX40A | ||
Mill head spindle revolution(r/min) | 125-630 | ||
Milling feeding speed(m/min) | 0.13-1 | ||
Fast forward and return speed(m/min) | 3.5 | ||
Hydraulic system pressure(Mpa) | 4 | ||
Work-piece support | √ | ||
